5-52m 3HP 2.2KW 5HP 4KW Submersible Fountain Pumps For Music Fountains
Submersible Fountain Pumps Parameters:
1. Flow: 10-100m3/h
2. Lift: 5-52m
3. Power: 2.2kw 4kw or Customized
4. Temperature: < 30℃, QS(R) hot submersible pump<80℃
5. Material: Stainless steel 304 or Cast iron
6. Install: Vertical or Horizontal
7. Note: Vertical deep well submersible pump could be refit horizontal install for fountain project
Submersible Fountain Pumps Applications:
1. Fountain project
2. Farm irrigation
3. Sprinkle irrigation with water
4. Music fountain
5. Dry fountain
6. Sculpture fountain
Customer Case:
1. Country: Saudi Arabia
2. Pump: submersible pump for fountain
3. Application: Al Ahsa Park
This fountain landscape attached an importance for their local government and twitter.
The detailed parameters as the table:
| Diameter | Flow | Head | Power | Voltage | Material |
| QS80-22-7.5 | 80m3/h | 22m | 7.5kw | 380v/60hz | stainless steel |
| QS30-54-7.5 | 30m3/h | 54m | 7.5kw | 380v/60hz | stainless steel |
| 250QJ80-80-30 | 80m3/h | 80m | 30kw | 380v/60hz | stainless steel |

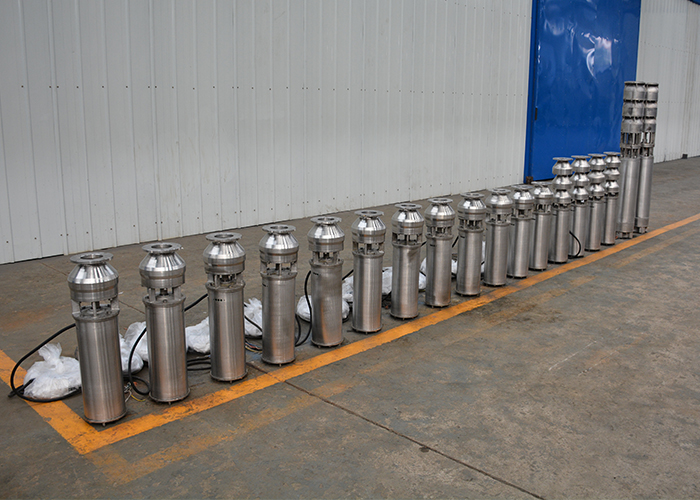

Stainless steel 304 submersible fountain pumps, deep well submersible pump also could be refit for fountain project.

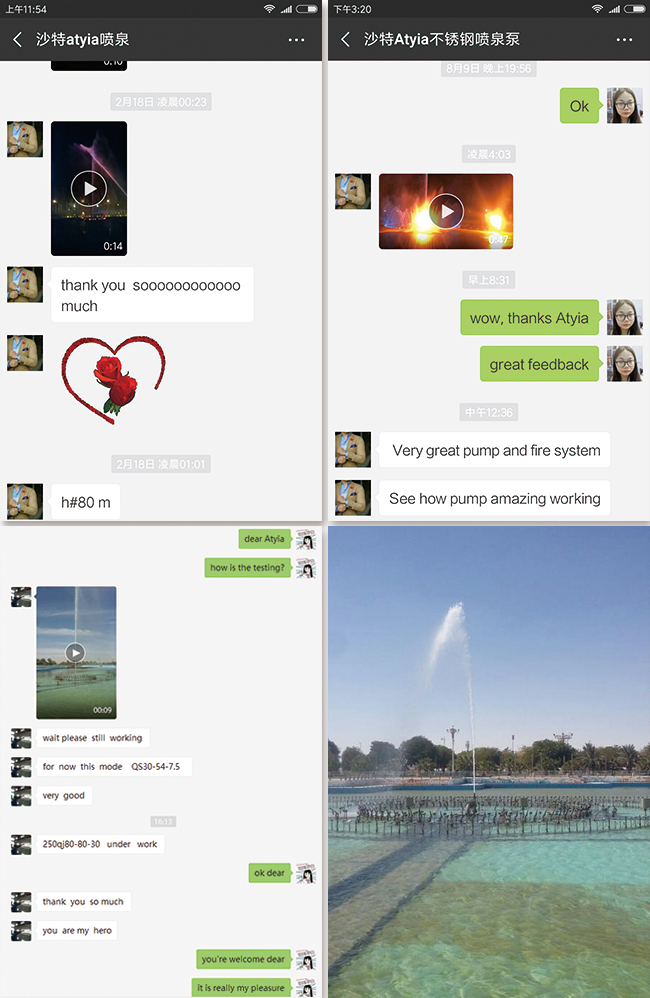

Customer Feedback:
Submersible fountain pumps parameters:
| Model | Flow | Head | Power | Current | Max.Dia. | Pump Height |
| QS Series | m3/h | m | kw | A | mm | mm |
| QS(P)10-40/3-2.2 | 10 | 40 | 2.2 | 5.7 | 170 | 680 |
| QS(P)15-26-2.2 | 15 | 26 | 170 | 580 |
| QS(P)20-20-2.2 | 20 | 20 | 170 | 580 |
| QS(P)25-17-2.2 | 25 | 17 | 168 | 580 |
| QS(P)40-12-2.2 | 40 | 12 | 168 | 580 |
| QS(P)65-7-2.2 | 65 | 7 | 168 | 580 |
| QS(P)15-34/2-3 | 15 | 34 | 3 | 7 | 168 | 650 |
| QS(P)10-54/3-3 | 10 | 54 | 170 | 680 |
| QS(P)25-25-3 | 25 | 25 | 170 | 580 |
| QS(P)20-30/2-3 | 20 | 30 | 168 | 650 |
| QS(P)40-16-3 | 40 | 16 | 168 | 580 |
| QS(P)50-13-3 | 50 | 13 | 168 | 580 |
| QS(P)80-7-3 | 80 | 7 | 187 | 580 |
| QS(P)65-10-3 | 65 | 10 | 168 | 580 |
| QS(P)100-6-3 | 100 | 6 | 200 | 580 |
| QS(P)10-65/5-4 | 10 | 65 | 4 | 10.2 | 168 | 750 |
| QS(P)10-72/4-4 | 10 | 72 | 168 | 720 |
| QS(P)10-81/6-4 | 10 | 81 | 168 | 780 |
| QS(P)15-54/4-4 | 15 | 54 | 168 | 720 |
| QS(P)20-40/2-4 | 20 | 40 | 168 | 730 |
| QS(P)25-30/2-4 | 25 | 30 | 168 | 730 |
| QS(P)30-30/2-4 | 30 | 30 | 168 | 730 |
| QS(P)32-26-4 | 32 | 26 | 168 | 670 |
| QS(P)40-21-4 | 40 | 21 | 168 | 630 |
| QS(P)50-16-4 | 50 | 16 | 168 | 630 |
| QS(P)65-13-4 | 65 | 13 | 168 | 630 |
| QS(P)65-15-4 | 65 | 15 | 168 | 630 |
| QS(P)80-12-4 | 80 | 12 | 187 | 630 |
| QS(P)100-9-4 | 100 | 9 | 200 | 630 |
| QS(P)10-95/7-5.5 | 10 | 95 | 5.5 | 13.4
| 187 | 1080 |
| QS(P)15-65/5-5.5 | 15 | 65 | 187 | 960 |
| QS(P)40-28-5.5 | 20 | 28 | 187 | 720 |
| QS(P)50-26-5.5 | 50 | 26 | 187 | 780 |
| QS(P)65-20-5.5 | 65 | 20 | 187 | 720 |
| QS(P)80-15-5.5 | 80 | 15 | 187 | 720 |
| QS(P)100-12-5.5 | 100 | 12 | 200 | 720 |
| QS(P)120-10-5.5 | 120 | 10 | 200 | 720 |
| QS(P)220-5-5.5 | 220 | 5 | 200 | 720 |
| QS(P)10-121/9-7.5 | 10 | 121 | 7.5 | 18.6 | 187 | 1250 |
| QS(P)15-80/6-7.5 | 15 | 80 | 187 | 1200 |
| QS(P)20-65/5-7.5 | 20 | 65 | 187 | 960 |
| QS(P)20-75/4-7.5 | 20 | 75 | 187 | 1130 |
| QS(P)25-65/5-7.5 | 25 | 65 | 187 | 960 |
| QS(P)30-50/3-7.5 | 30 | 50 | 187 | 950 |
| QS(P)30-54/3-7.5 | 30 | 54 | 187 | 950 |
| QS(P)32-48/4-7.5 | 32 | 48 | 187 | 950 |
| QS(P)40-40/2-7.5 | 40 | 40 | 187 | 820 |
| QS(P)50-30/5-7.5 | 50 | 30 | 187 | 950 |
| QS(P)50-36/3-7.5 | 50 | 36 | 187 | 950 |
| QS(P)65-25-7.5 | 65 | 25 | 187 | 740 |
| QS(P)80-22/2-7.5 | 80 | 22 | 187 | 820 |
| QS(P)100-15-7.5 | 100 | 15 | 200 | 740 |
| QS(P)100-17-7.5 | 100 | 17 | 200 | 740 |
| QS(P)250-8-7.5 | 250 | 8 | 200 | 740 |
Buying Guide:
If your requirements is special, please tell us. We offer various of submersible pump parameters, choosing the suitable working size according to your requirements. Or if you are not sure, please tell us your capacity and head, we will suggest the best suitable model for you.
